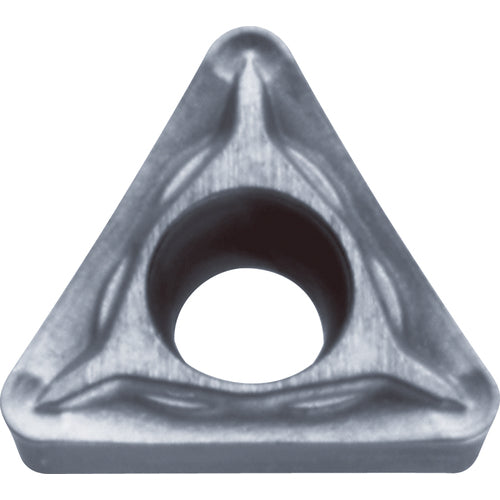

TCMT-1.81.51HP TN60
Item #: KY91OTM86680
Brand: Kyocera Precision Tools
Model #: OTM86680
| Product Specifications | |
|---|---|
| Insert Thickness (S) | 3/32″ |
| Applicable Material | Steel | Stainless Steel |
| Insert Included Angle (EPSR) | 60 Degrees |
| Chip Breaker Type | HP |
| Inscribed Circle Diameter (IC) | 7/32″ |
| Series/List # | Counterbores |
| Corner Radius (RE) | 1/64″ |
| Cutting Edge Material | Cermet |
| Fixing Hole Diameter (D1) | 0.098″ |
| Number of Cutting Edges | 3 |
| Shape | Triangle |
| Measurement Type | Inch |
| Coating | TiCN/NbC |
| Cutting Direction (HAND) | Right Hand |
| Grade | TN60 |
| Insert Style | TCMT |
| Application | Drilling |
| Insert Size | 18151 |
