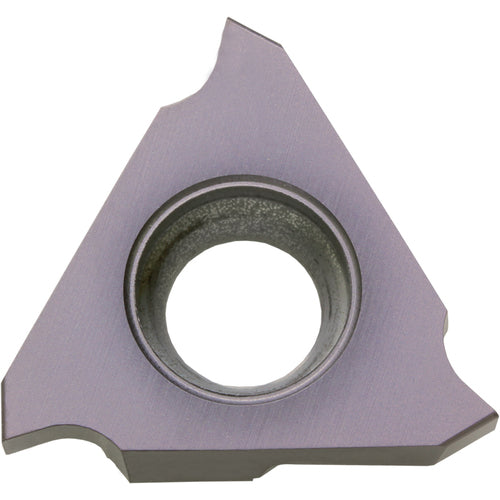

GBA 43L062N PV7040 Grade PVD Cermet, Indexable Grooving Insert
Item #: KY91TJB89019
Brand: Kyocera Precision Tools
Model #: TJB89019
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.0618″ |
| Applicable Material | Steel |
| Corner Radius (RE) | 0.008″ |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.1378″ |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | N |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Insert Style | GBA |
| Fixing Hole Diameter (D1) | 0.2165″ |
| Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive |
| Mounting Style | Screw | Clamp |
| Coating | TiC/TiN (MEGACOAT) |
| Series/List # | GBA |
| Grade | PV7040 |
| Coating Process | PVD |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Application | External Grooving |
