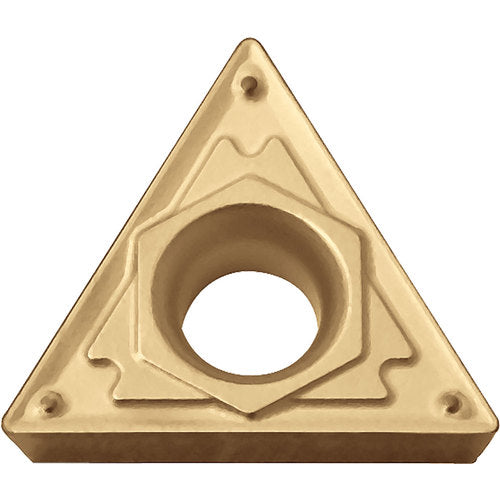

TCMT 3252 HQ CCX, 1/32″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCl2O3/Tin, 60 Degree Triangle, Turning Indexable Insert
Item #: KY91TMJ40070
Brand: Kyocera Precision Tools
Model #: TMJ40070
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | External Turning |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | TCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/32″ |
| Number of Cutting Edges | 3 |
| Insert Size | 3252 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ |
| Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 60° Triangle |
| Coating | TiCl2O3/TiN |
| Series/List # | ISOI |
| Grade | CCX |
| Model No | 8864264 |
