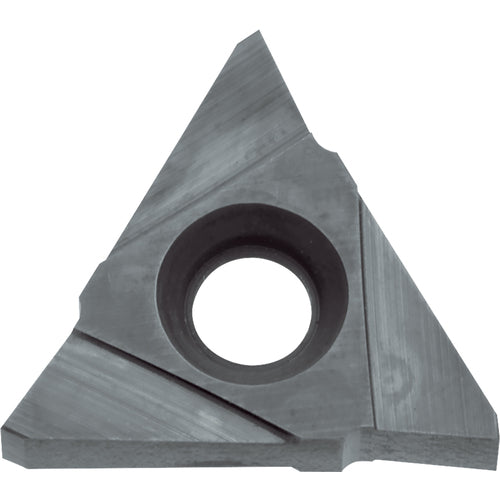

TPMC 32NGR062 TN60 Grade Uncoated Cermet, Indexable Grooving Insert
Item #: KY91TSJ89232
Brand: Kyocera Precision Tools
Model #: TSJ89232
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.0618″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.1563″ |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | NG |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | TPMC |
| Fixing Hole Diameter (D1) | 0.1772″ |
| Number of Teeth | 3 |
| Coating | TiCN/NbC |
| Mounting Style | Screw |
| Grade | TN60 |
| Series/List # | STVP |
| Cutting Edge Material | Cermet |
| Coating Process | Uncoated |
| Application | External Grooving |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel |
