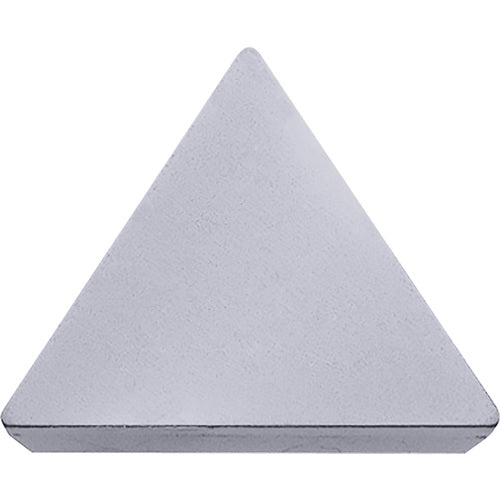

TPM 323 TN100M Grade Uncoated Cermet, Indexable Milling Insert
Item #: KY91TSP00972
Brand: Kyocera Precision Tools
Model #: TSP00972
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Super-Alloys / Titanium |
| Insert Style | TPM |
| Application | Boring | Chamfering | External Turning | Facing |
| Insert Size | 323 |
| Corner Radius (RE) | 3/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ |
| Series/List # | GPM |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Material | Cermet |
| Coating | TiCN/NbC |
| Coating Process | Uncoated |
| Grade | TN100M |
| Number of Cutting Edges | 3 |
| Shape | 60° Triangle |
| Measurement Type | Inch |
