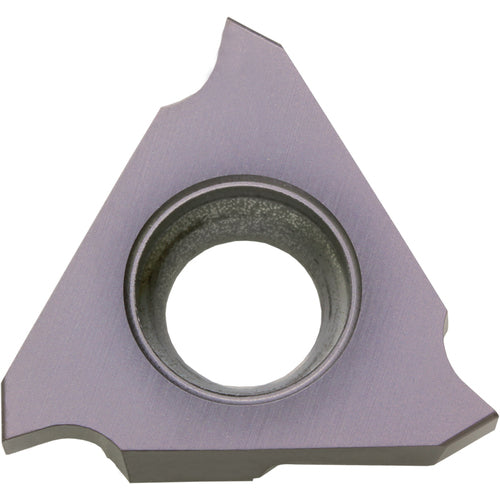

GBA 32L050005 PR930 INSRT
Item #: KY928805061
Brand: Kyocera Precision Tools
Model #: TKT06205
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.5 mm |
| Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.05 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 1.2 mm |
| Insert Style | GBA |
| Insert Thickness (S) | 3.18 mm |
| Insert Seat Size Code (SSC) | 32 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Number of Teeth | 3 |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Mounting Style | Clamp |
| Coating | TiCN |
| Series/List # | GBA |
| Grade | PR930 |
| Coating Process | PVD |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
