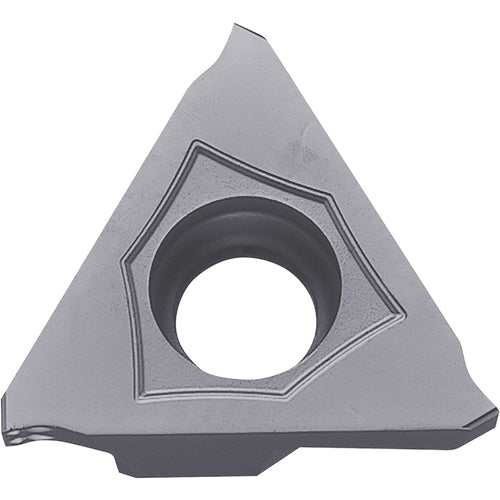

GBA 43L200020MY TN6020
Item #: KY928830282
Brand: Kyocera Precision Tools
Model #: TSQ17438
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 3.5 mm |
| Chip Breaker Type | MY |
| Insert Thickness (S) | 4.76 mm |
| Insert Style | GBA |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Insert Seat Size Code (SSC) | 43 |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Number of Teeth | 3 |
| Coating | TiCN |
| Mounting Style | Clamp |
| Grade | TN6020 |
| Series/List # | GBA |
| Shape | Molded Chipbreaker, MY Chipbreaker |
| Coating Process | Uncoated |
| Cutting Edge Material | Cermet |
| Measurement Type | Metric |
