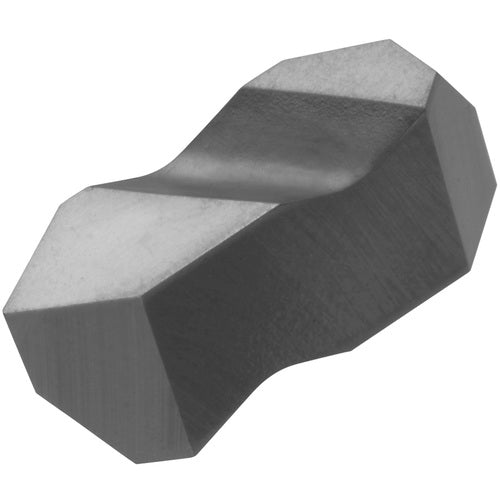

KCT 3L PR660 INSERT
Item #: KY928850087
Brand: Kyocera Precision Tools
Model #: TKO89079
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Cutting Direction (HAND) | Left Hand |
| Thread Pitch (TP) | External 1.25 mm - 4 mm | Internal 2 mm - 5 mm |
| Application | Internal & External Threading |
| Threads per Inch (TPI) | External 6-20 | Internal 5-12 |
| Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.007″ |
| Number of Teeth | 2 |
| Insert Thickness (S) | 0.195″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 3 |
| Series/List # | Cera-Notch |
| Grade | PR660 |
| Mounting Style | Clamp |
| Coating | TiN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Insert Style | KCT |
| Cutting Position | Internal & External |
