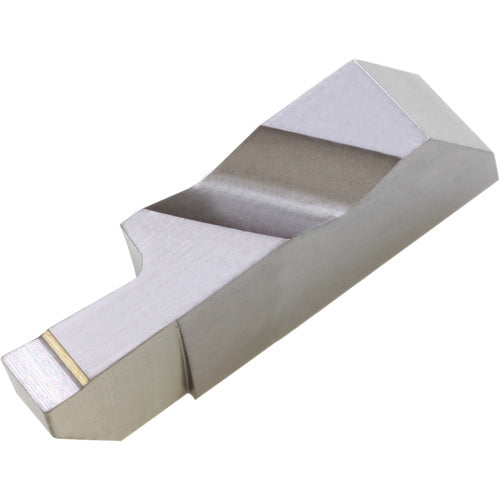

KCGDP 3062L TC40 INSERT
Item #: KY928850402
Brand: Kyocera Precision Tools
Model #: 8850402
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.0618″ |
| Overall Length (OAL) | 0.8858″ |
| Corner Radius (RE) | 0.0079″ |
| Insert Style | KCGDP |
| Cutting Depth Maximum (CDX) | 1/8″ |
| Insert Seat Size Code (SSC) | 3062 |
| Insert Thickness (S) | 0.195″ |
| Number of Teeth | 2 |
| Grade | TC40 |
| Mounting Style | Clamp |
| Cutting Edge Material | Cermet |
| Series/List # | Cera-Notch |
| Applicable Material | Steel | Cast Iron |
| Coating Process | Uncoated |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Inch |
