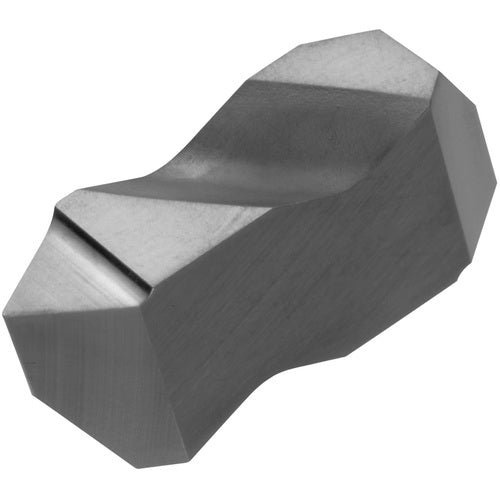

KCTP 2R PR1215 INSERT
Item #: KY928850698
Brand: Kyocera Precision Tools
Model #: 8850698
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | External 0.7 mm - 3 mm | Internal 1.25 mm - 3.5 mm |
| Application | Internal & External Threading |
| Threads per Inch (TPI) | External 8-36 | Internal 7-20 |
| Applicable Material | Steel | Stainless Steel |
| Corner Radius (RE) | 0.004″ |
| Number of Teeth | 2 |
| Insert Thickness (S) | 0.15″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 2 |
| Series/List # | Cera-Notch |
| Grade | PR1215 |
| Mounting Style | Clamp |
| Coating | MEGACOAT |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Insert Style | KCTP |
| Cutting Position | Internal & External |
