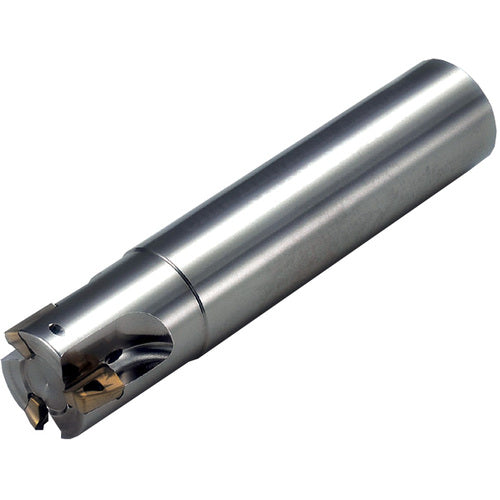

MEC 0625S62511T 0.6250 EM
Item #: KY968604635
Brand: Kyocera Precision Tools
Model #: OTM87661
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5/8″ |
| Tool Type | End Mill |
| Cutting Diameter (DC) | 5/8″ |
| Usable Length (LU) | 2/5″ |
| Cutting Item Count (CICT) | 2 |
| Flute Count (NOF) | 2 |
| Overall Length (OAL) | 3″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Cylinder |
| Style | MEC |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping |
| Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Series/List # | MEC |
| Master Insert Identification (MIID) | BDMT11T302ER-JT | BDMT11T304ER-JT | BDMT11T308ER-JT | BDMT11T312ER-JT | BDMT11T316ER-JT | BDMT11T320ER-JT | BDMT11T324ER-JT | BDMT11T331ER-JT | BDMT11T302ER-JS | BDMT11T304ER-JS | BDMT11T308ER-JS | BDGT11T302FR-JA | BDGT11T304FR-JA | BDGT11T308FR-JA | BDMT11T302FR | BDMT11T304FR |
| Measurement Type | Inch |
| Head Length (LH) | 1.0236″ |
