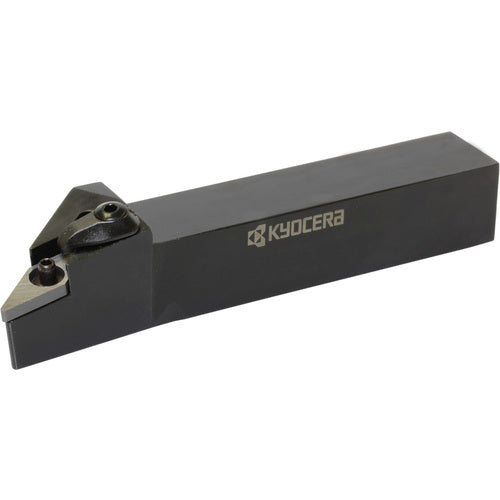

MVLNR 2525M16 INDEX TURN
Item #: KY968801808
Brand: Kyocera Precision Tools
Model #: THC01250
| Product Specifications | |
|---|---|
| Shank Height (H) | 25 mm |
| Application | External Turning | Copying |
| Shank Width (B) | 25 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm |
| Rake Angle Radial (GAMF) | -9 Degrees |
| Head Length (LH) | 38 mm |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Clamping System | Multi-Lock Clamp and Lock Pin |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... |
| Series/List # | MVLN |
