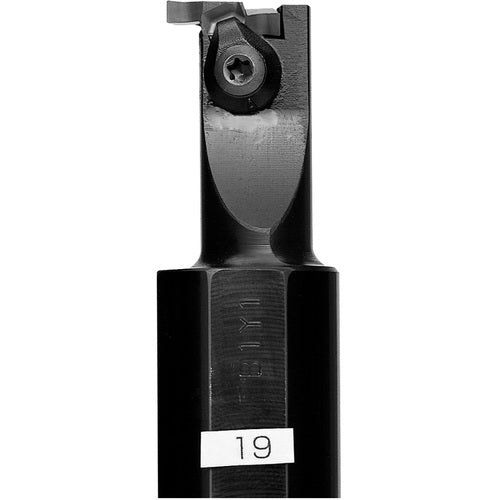

GIVR 20252B INT GROOVE
Item #: KY968804760
Brand: Kyocera Precision Tools
Model #: THC04790
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 2.8 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 4 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 4.2 mm |
| Application | Small Diameter Grooving |
| Shank Height (H) | 23 mm |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm |
| Series/List # | GIV |
| Head Length (LH) | 35 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 180 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
