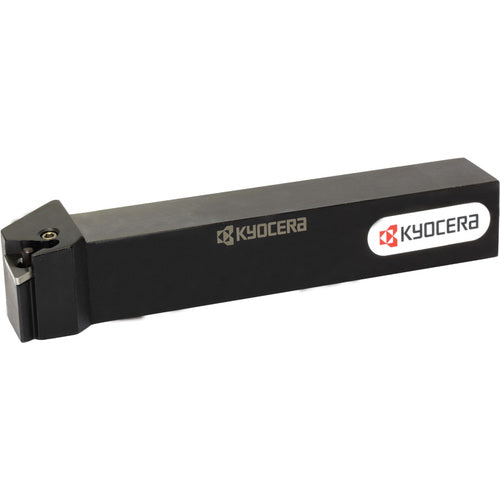

PTFNL 2525M22 INDEX TURN
Item #: KY968813048
Brand: Kyocera Precision Tools
Model #: THC00540
| Product Specifications | |
|---|---|
| Shank Height (H) | 25 mm |
| Application | Facing |
| Shank Width (B) | 25 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 150 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 28 mm |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | TN_A43… | TN_G43… | TN_M43… | TN_X43… |
| Series/List # | PTFN |
