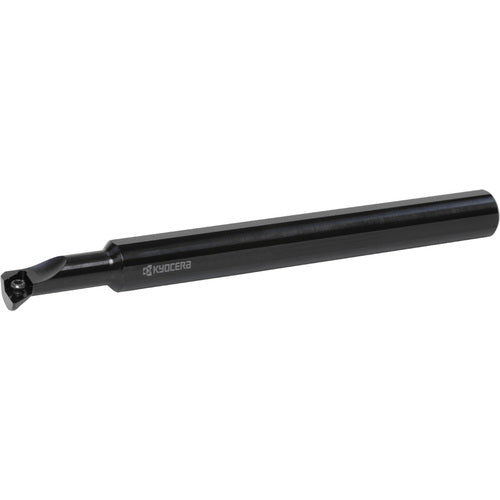

S19GSDLCL11 EXTL SLEEVE
Item #: KY968818478
Brand: Kyocera Precision Tools
Model #: THC09270
| Product Specifications | |
|---|---|
| Shank Height (H) | 0.6693″ |
| Rake Angle Radial (GAMF) | 7 |
| Shank Width (B) | 0.6693″ |
| Cutting Depth Maximum (CDX) | 0.2283″ |
| Overall Length (OAL) | 3.5433″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | DCGT325… | DCMX325… | DCMT325… | DCET325… | DCGW325… | DCMW325… |
| Series/List # | S…SDLC |
| Coolant Supply Property (CSP) | No |
