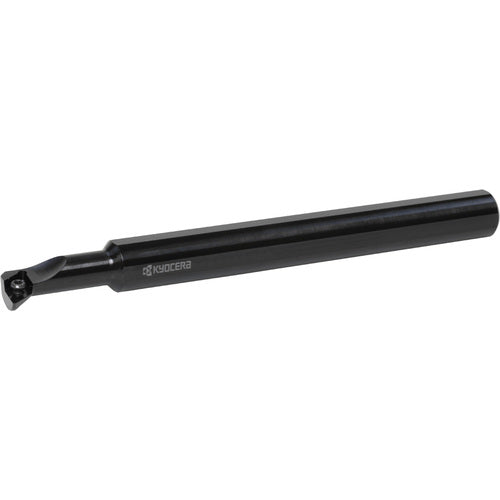

S22KSDLCL11 EXTL SLEEVE
Item #: KY968818479
Brand: Kyocera Precision Tools
Model #: THC09278
| Product Specifications | |
|---|---|
| Shank Height (H) | 20 mm |
| Rake Angle Radial (GAMF) | 7 |
| Shank Width (B) | 20 mm |
| Cutting Depth Maximum (CDX) | 5.8 mm |
| Overall Length (OAL) | 120 mm |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | DCGT325… | DCMX325… | DCMT325… | DCET325… | DCGW325… | DCMW325… |
| Series/List # | S…SDLC |
| Coolant Supply Property (CSP) | No |
