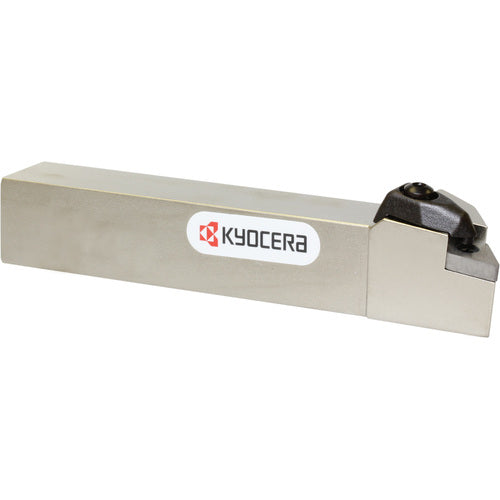

DDJNL 164D INDEXTURN HLDR
Item #: KY968819013
Brand: Kyocera Precision Tools
Model #: THC89609
| Product Specifications | |
|---|---|
| Shank Height (H) | 1″ |
| Application | External Turning | Copying |
| Shank Width (B) | 1″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 6″ |
| Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 1.5354″ |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Clamping System | Double Clamp |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | DN_A43… | DN_G43… | DN_M43… | DN_X43… |
| Series/List # | DDJN |
