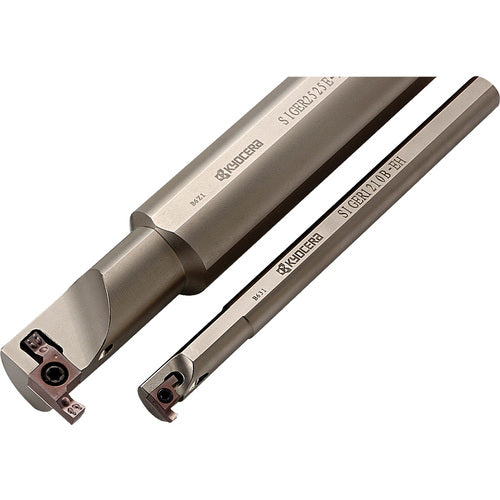

SIGER 1010BWH INT GROOV
Item #: KY968825141
Brand: Kyocera Precision Tools
Model #: THC04729
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 1 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 2.2 mm |
| Application | Grooving |
| Shank Height (H) | 9 mm |
| Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 10 mm |
| Series/List # | SIGE |
| Head Length (LH) | 35 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 125 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
