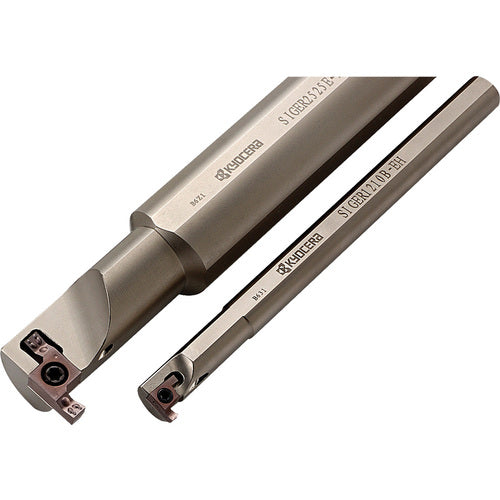

SIGEL 1616EEH INT GROOVE
Item #: KY968825467
Brand: Kyocera Precision Tools
Model #: THC89537
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.0394″ |
| Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.1378″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.2559″ |
| Application | Grooving |
| Shank Height (H) | 0.96″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ |
| Series/List # | SIGE |
| Head Length (LH) | 1.772″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 7.88″ |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1″ |
