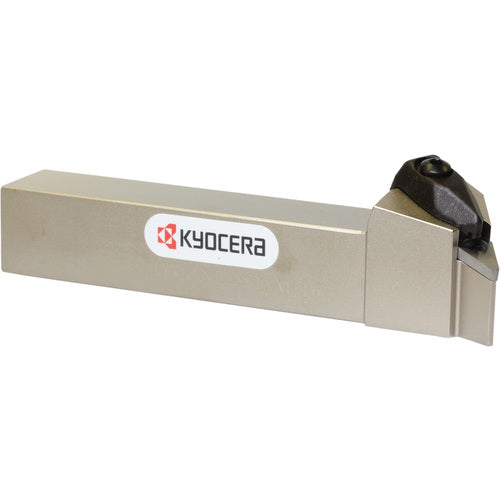

DVPNL 2020K16 INDEX TURN
Item #: KY968828607
Brand: Kyocera Precision Tools
Model #: THC13281
| Product Specifications | |
|---|---|
| Shank Height (H) | 20 mm |
| Application | External Turning | Facing | Copying | Undercutting |
| Shank Width (B) | 20 mm |
| Rake Angle Axial (GAMP) | -13 Degrees |
| Overall Length (OAL) | 125 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Head Length (LH) | 40 mm |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Clamping System | Double Clamp |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | VN_A33… | VN_G33… | VN_M33... |
| Series/List # | DVPN |
