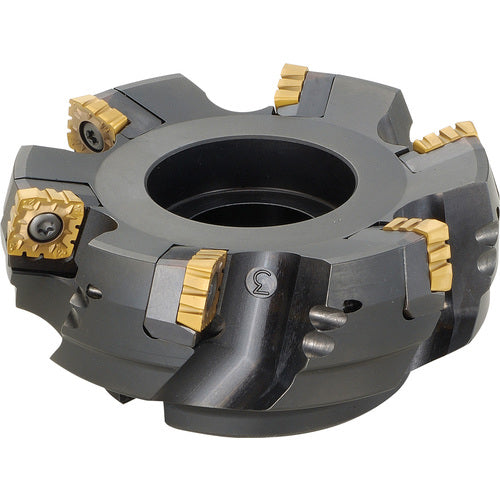

MSRS15250R14TM15 250.00MM
Item #: KY968829568
Brand: Kyocera Precision Tools
Model #: THN01343
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 257 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 250 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 257 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 14 |
| Application | Facing | Heavy Milling |
| Depth of Cut Maximum (APMX) | 12 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 60 mm |
| Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Overall Length (OAL) | 60 mm |
| Tool Type | Face Mill |
| Hub Diameter (DHUB) | 140 mm |
| Series/List # | MSRS15 |
| Master Insert Identification (MIID) | SPMT1806ED… |
