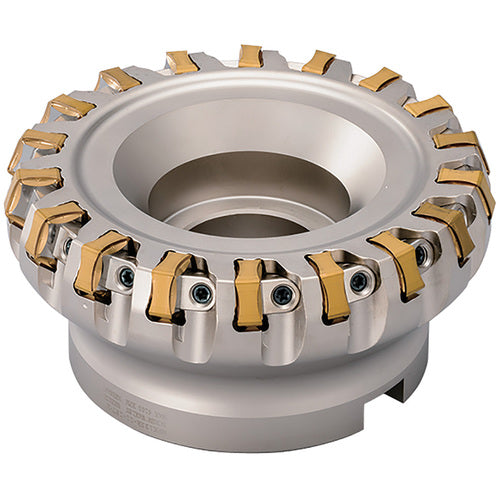

MFK 5000R1118T MFK 5.0000
Item #: KY968829569
Brand: Kyocera Precision Tools
Model #: THN08225
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5.34″ |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 5″ |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 5.34″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 18 |
| Application | Facing | Cast Iron Milling |
| Depth of Cut Maximum (APMX) | 0.2362″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Overall Length (OAL) | 2.4803″ |
| Tool Type | Face Mill |
| Hub Diameter (DHUB) | 3-3/4″ |
| Series/List # | MFK |
| Master Insert Identification (MIID) | PNMG11… | PNEG11… | PNEA11… |
