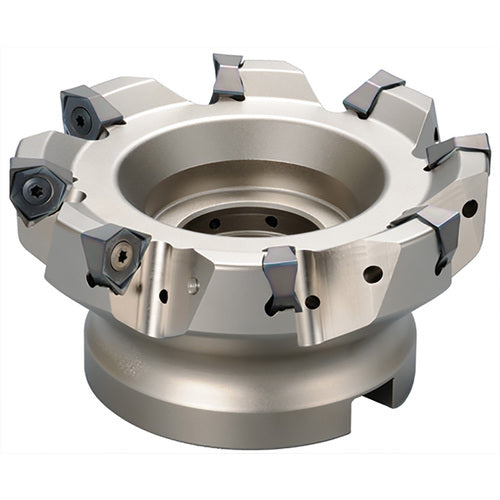

M-SIX 160.00MM FACE MILL
Item #: KY968835721
Brand: Kyocera Precision Tools
Model #: THN04704
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 102 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 160 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 102 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 |
| Application | Facing | Shouldering | Slotting | Plunging |
| Depth of Cut Maximum (APMX) | 8 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 63 mm |
| Tool Type | Face Mill |
| Master Insert Identification (MIID) | PNMU1205… | PNEU1205… |
| Series/List # | M-SIX |
