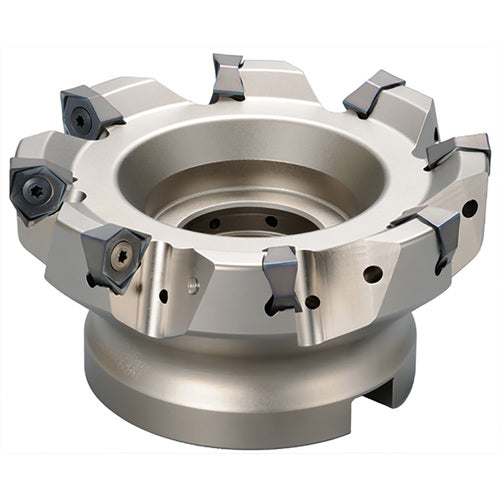

M-SIX 5.0000 FACE MILL
Item #: KY968835777
Brand: Kyocera Precision Tools
Model #: THN04728
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5″ |
| Body Material | Steel |
| Cutting Diameter (DC) | 5″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 |
| Application | Facing | Shouldering | Slotting | Plunging |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 2.4803″ |
| Tool Type | Face Mill |
| Master Insert Identification (MIID) | PNMU1205… | PNEU1205… |
| Series/List # | M-SIX |
| Coolant Supply Property (CSP) | Coolant Thru |
