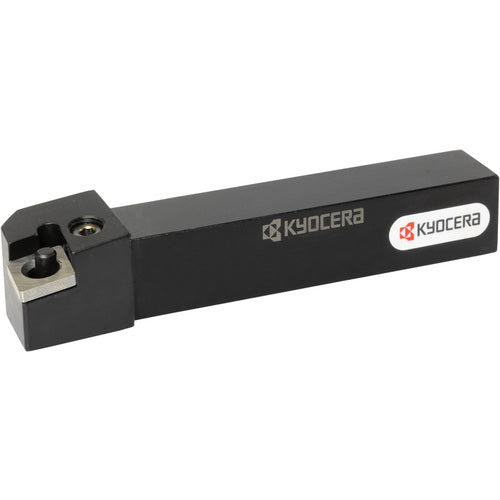

PCLNR 1620JX12FF HOLDER
Item #: KY968835945
Brand: Kyocera Precision Tools
Model #: THC09358
| Product Specifications | |
|---|---|
| Shank Height (H) | 16 mm |
| Application | Swiss | External Turning | Facing |
| Shank Width (B) | 20 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 120 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 26 mm |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | CNGG43…MFP-SK | CNGG43…FP-TK |
| Series/List # | PCLN |
