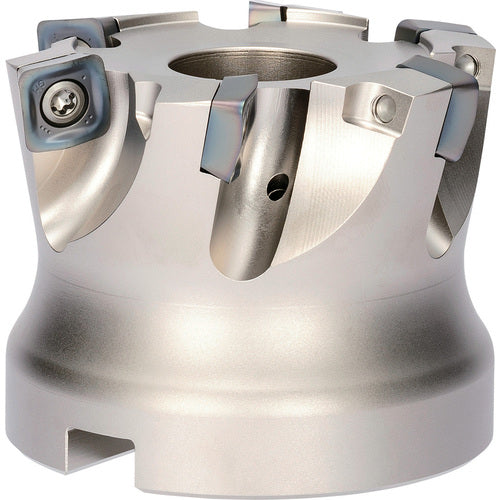

MFH-RAPTOR 3.0000
Item #: KY968839232
Brand: Kyocera Precision Tools
Model #: THN07824
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3″ |
| Usable Length (LU) | 0.1378″ |
| Cutting Diameter (DC) | 3″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 7 |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2.4803″ |
| Functional Length (LF) | 0.059″ |
| Master Insert Identification (MIID) | SOMT10… |
| Flange Diameter (DF) | 2-3/4″ |
| Ramping Angle Maximum (RMPX) | 1 Degrees |
| Tool Type | High Feed Face Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | MFH-RAPTOR |
