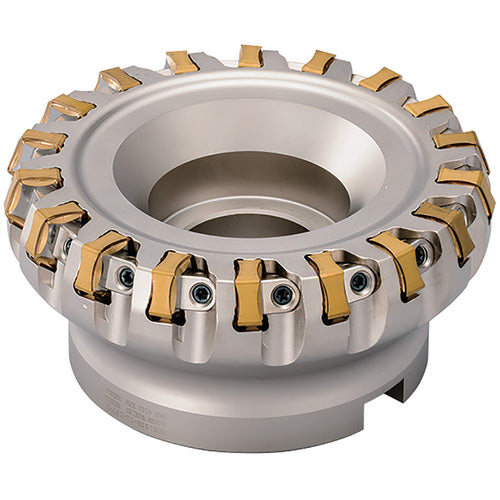

MFK 160R1116TM 160.00MM
Item #: KY968842565
Brand: Kyocera Precision Tools
Model #: THN08112
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 169 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 160 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 169 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 16 |
| Application | Facing | Cast Iron Milling |
| Depth of Cut Maximum (APMX) | 6 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Overall Length (OAL) | 63 mm |
| Tool Type | Face Mill |
| Hub Diameter (DHUB) | 100 mm |
| Series/List # | MFK |
| Master Insert Identification (MIID) | PNMG11… | PNEG11… | PNEA11… |
