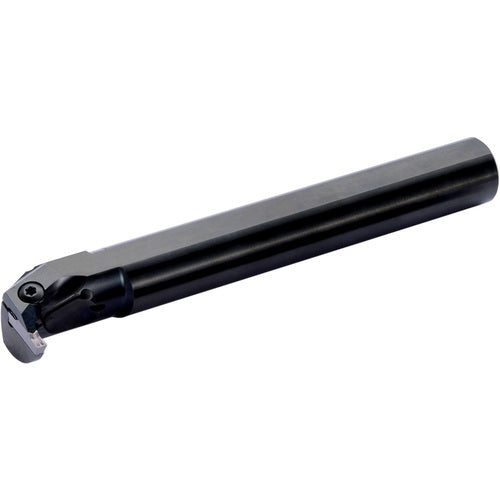

KGDIR 20B5 INT GROOV HLDR
Item #: KY968845446
Brand: Kyocera Precision Tools
Model #: THT05386
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.1969″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.1969″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.4331″ |
| Application | Grooving |
| Shank Height (H) | 1.1417″ |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.5748″ |
| Series/List # | KGDI |
| Head Length (LH) | 1.9685″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 8-1/2″ |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
