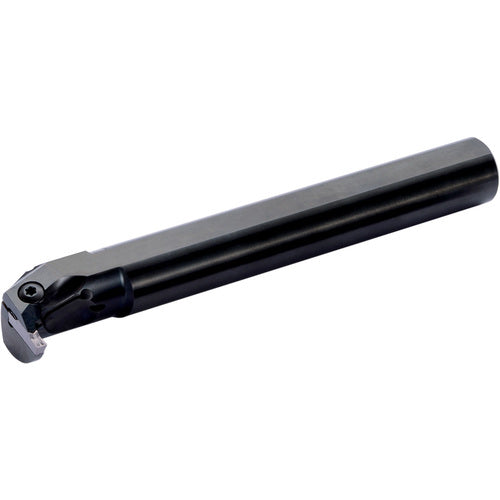

KGDIR 4032B5 INT GROOVE
Item #: KY968845501
Brand: Kyocera Precision Tools
Model #: THC14547
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 5 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 11 mm |
| Application | Grooving |
| Shank Height (H) | 29 mm |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm |
| Series/List # | KGDI |
| Head Length (LH) | 50 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 220 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
