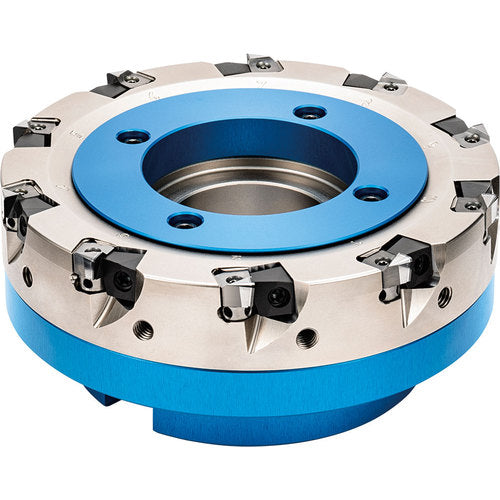

MFAH 100RA12TSF100.00MM
Item #: KY968858656
Brand: Kyocera Precision Tools
Model #: THN08371
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 85 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 100 mm |
| Body Material | Hybrid Steel |
| Cutting Diameter Maximum (DCX) | 85 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 |
| Application | Facing | Finishing of Aluminum |
| Depth of Cut Maximum (APMX) | 4.6 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 50 mm |
| Tool Type | Face Mill |
| Master Insert Identification (MIID) | ENET09… |
| Series/List # | MFAH |
