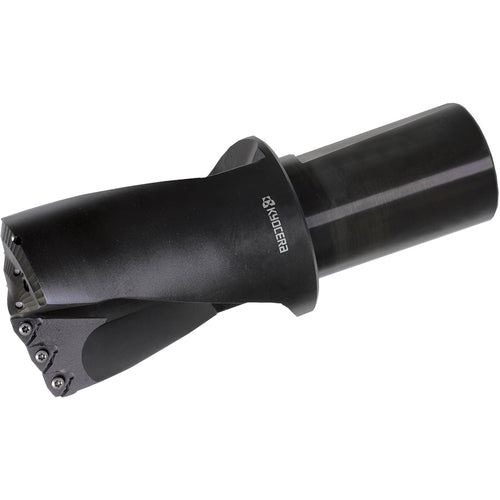

DR4000-X1 0
Item #: KY96OTM86381
Brand: Kyocera Precision Tools
Model #: OTM86381
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4″ |
| Cutting Item Count (CICT) | 6 |
| Usable Length (LU) | 4″ |
| Cutting Diameter Minimum (DCN) | 4″ |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 2″ |
| Point Length (PL) | 0.4819″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| Shank Length (LS) | 3-1/4″ |
| Master Insert Identification (MIID) | WCMX06T308-M1 | WCMX06T308-M1A |
| Overall Length (OAL) | 9.3799″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 4″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8600987 |
