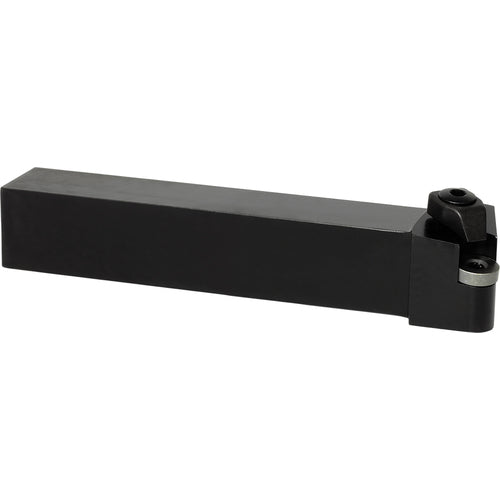

CRSNL 2525M12A, Indexable Turning Toolholder
Item #: KY96THA00547
Brand: Kyocera Precision Tools
Model #: THA00547
| Product Specifications | |
|---|---|
| Shank Height (H) | 25 mm |
| Application | External Turning | Facing |
| Shank Width (B) | 25 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 26 mm |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Clamping System | Top Clamp |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
