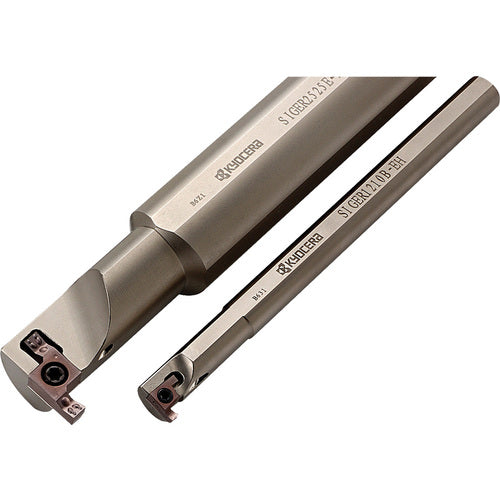

SIGER0808AWH TURNING TOOL HOLDER
Item #: KY96THC04727
Brand: Kyocera Precision Tools
Model #: THC04727
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 1 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 2 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 1.5 mm |
| Application | Grooving |
| Shank Height (H) | 7.2 mm |
| Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 8 mm |
| Series/List # | SIGE |
| Head Length (LH) | 28 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 125 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
