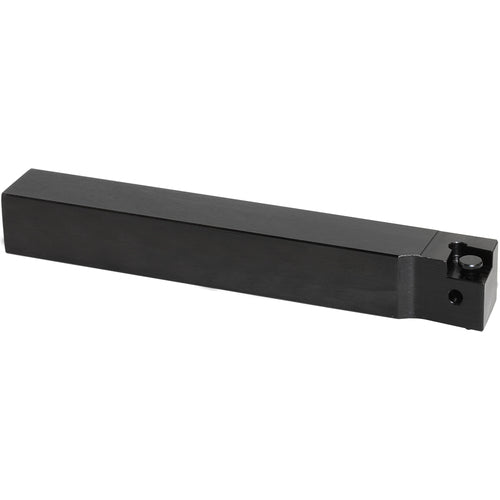

ACLCL 1212JX09FF, Indexable Turning Toolholder
Item #: KY96THC07031
Brand: Kyocera Precision Tools
Model #: THC07031
| Product Specifications | |
|---|---|
| Shank Height (H) | 12 mm |
| Application | External Turning | Facing | Small Parts Machining |
| Shank Width (B) | 12 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 120 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Body Material | Steel |
| Cutting Direction (HAND) | Left Hand |
| Clamping System | Anchor Pin |
| Coolant Supply Property (CSP) | External |
| Measurement Type | Metric |
