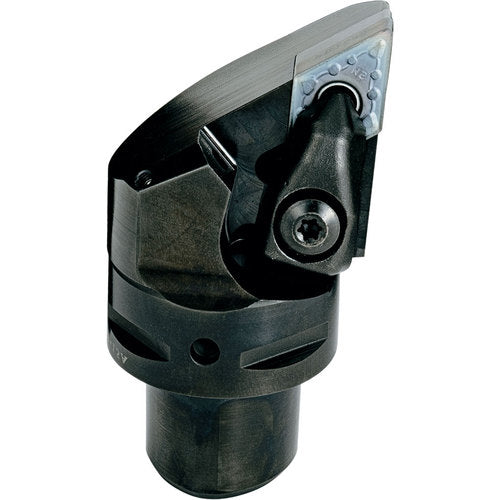

KPC3 DDJNL 2205015S Quick Change, Polygon Shank Indexable Turning Toolholder
Item #: KY96THC14729
Brand: Kyocera Precision Tools
Model #: THC14729
| Product Specifications | |
|---|---|
| Functional Length (LF) | 50 mm |
| Application | Copying | External Turning |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Rake Angle Axial (GAMP) | -7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Minimum Bore Diameter (DMIN) | 110 mm |
| Body Material | Steel |
| Cutting Direction (HAND) | Left Hand |
| Clamping System | Double Clamp |
| Coolant Supply Property (CSP) | External |
| Measurement Type | Metric |
