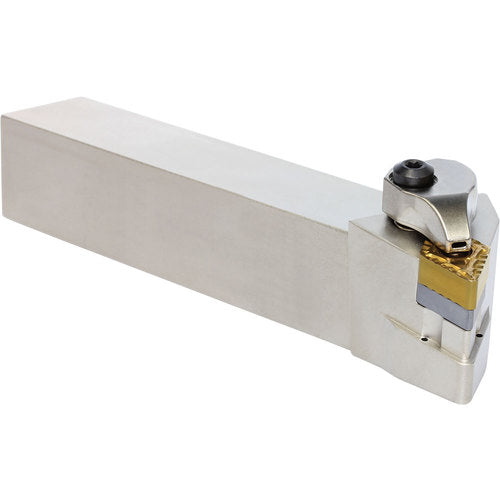

DDJNL 2020K15JCT, Indexable Coolant-Through Turning Toolholder
Item #: KY96THC14908
Brand: Kyocera Precision Tools
Model #: THC14908
| Product Specifications | |
|---|---|
| Shank Height (H) | 20 mm |
| Application | Copying | External Turning |
| Shank Width (B) | 20 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 125 mm |
| Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 37 mm |
| Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Clamping System | Double Clamp |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
