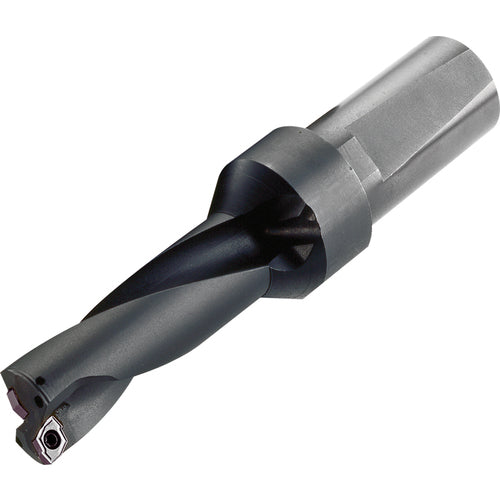

S40DRZ4618415, DRZ Magic Drill 46.00mm Cutting Diameter, 4xD, Coolant-Through Indexable Insert Drill
Item #: KY96THD01370
Brand: Kyocera Precision Tools
Model #: THD01370
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 46 mm |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 184 mm |
| Cutting Diameter Minimum (DCN) | 46 mm |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 46 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Shank Type | Weldon |
| Length Group | 4D |
| Overall Length (OAL) | 287 mm |
| Master Insert Identification (MIID) | ZCMT150408 | ZCMT150406SP |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8813354 |
