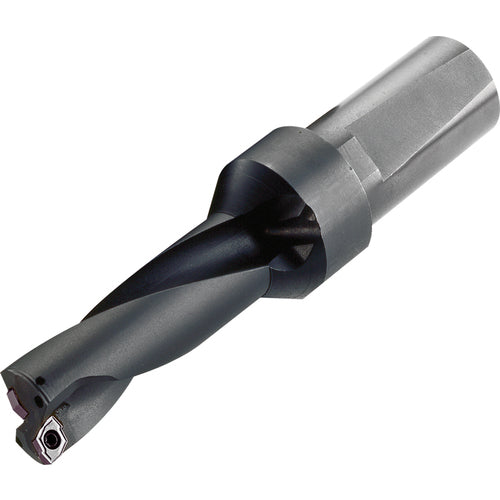

S40DRZ4522515, DRZ Magic Drill 45.00mm Cutting Diameter, 5xD, Coolant-Through Indexable Insert Drill
Item #: KY96THD04426
Brand: Kyocera Precision Tools
Model #: THD04426
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 45 mm |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 225 mm |
| Cutting Diameter Minimum (DCN) | 45 mm |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 45 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Shank Type | Weldon |
| Length Group | 5D |
| Overall Length (OAL) | 324 mm |
| Master Insert Identification (MIID) | ZCMT150408 | ZCMT150406SP |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8806716 |
