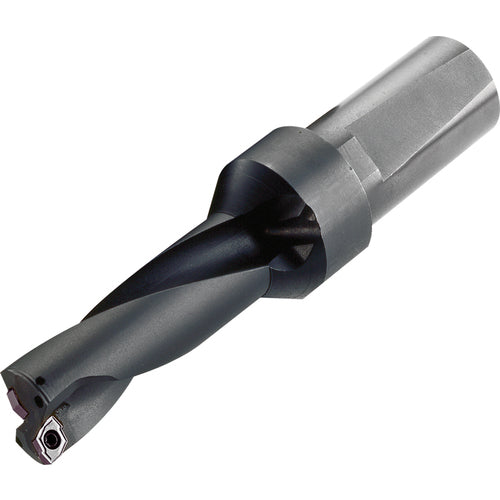

S40DRZ5616820, DRZ Magic Drill 56.00mm Cutting Diameter, 3xD, Coolant-Through Indexable Insert Drill
Item #: KY96THD60406
Brand: Kyocera Precision Tools
Model #: THD60406
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 56 mm |
| Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 168 mm |
| Cutting Diameter Minimum (DCN) | 56 mm |
| Application | Drilling |
| Cutting Diameter Maximum (DCX) | 56 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Measurement Type | Metric |
| Shank Type | Weldon |
| Length Group | 3D |
| Overall Length (OAL) | 272 mm |
| Master Insert Identification (MIID) | ZCMT200608 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8821075 |
