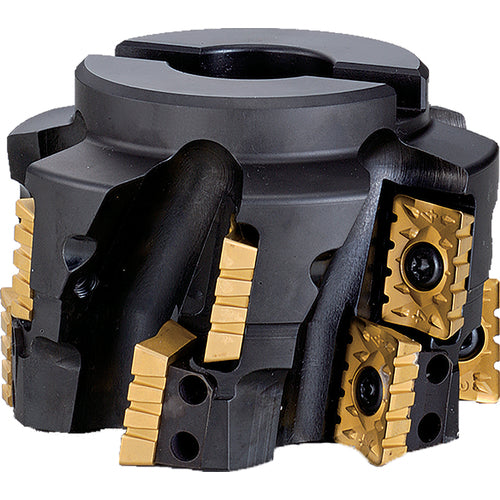

MSR 080R4M Metric Bore Diameter, 90 Degree Face Mill
Item #: KY96THN01057
Brand: Kyocera Precision Tools
Model #: THN01057
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 80 mm |
| Master Insert Identification (MIID) | APMT2506 |
| Cutting Diameter (DC) | 80 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 80 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 16 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 90 mm |
| Application | Facing | Heavy Milling | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 27 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 115 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 55 mm |
| Series/List # | MSR |
