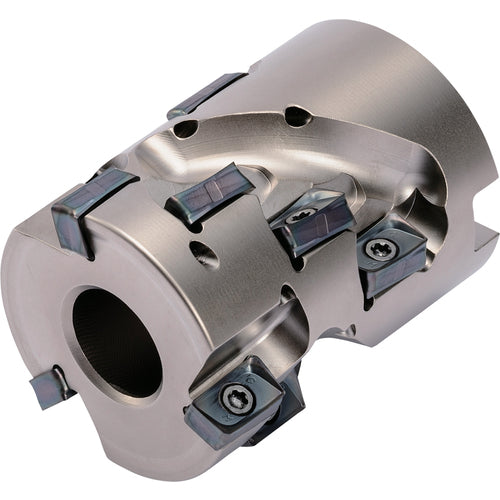

MEWH 100R1545TM (M-FOUR Series), Helical Shell Mill
Item #: KY96THN04255
Brand: Kyocera Precision Tools
Model #: THN04255
| Product Specifications | |
|---|---|
| Application | Facing | Shouldering |
| Master Insert Identification (MIID) | LOMU1505 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Coolant Supply Property (CSP) | External Coolant |
| Cutting Item Count (CICT) | 20 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 53 mm |
| Cutting Diameter Maximum (DCX) | 100 mm |
| Cutting Diameter (DC) | 100 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Body Material | Steel |
| Flute Count (NOF) | 5 |
| Tool Type | Helical Shell Mill |
| Overall Length (OAL) | 74 mm |
| Series/List # | MEW |
| Number of Teeth | 20 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
