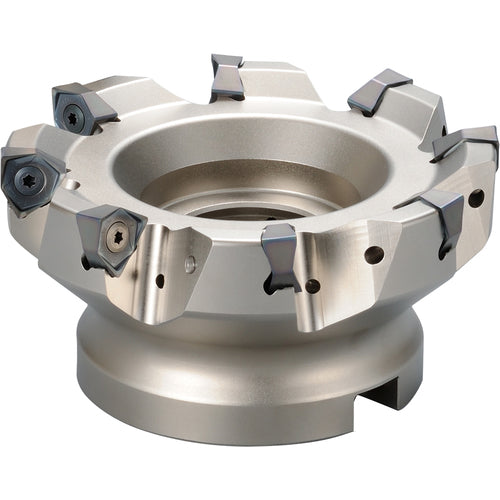

MFWN 90250R12T Inch Bore Diameter, 90 Degree Face Mill
Item #: KY96THN04665
Brand: Kyocera Precision Tools
Model #: THN04665
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 250 mm |
| Master Insert Identification (MIID) | WNEU080608EN-GL | WNMU080608EN-GM | WNMU080608EN-SM | WNMU080608EN-GH | WNGT080608FN-AM |
| Cutting Diameter (DC) | 250 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 250 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 12 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm |
| Application | Facing | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 47.63 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 142 mm |
| Series/List # | MFWN |
