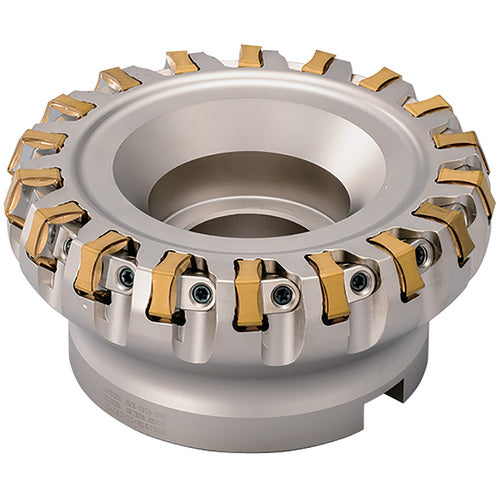

MFK 250R1124TM Metric Bore Diameter, 70 Degree Face Mill
Item #: KY96THN08120
Brand: Kyocera Precision Tools
Model #: THN08120
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 259 mm |
| Master Insert Identification (MIID) | PNMG11 | PNEG11 | PNEA11 |
| Cutting Diameter (DC) | 259 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 259 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 24 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm |
| Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 60 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Hub Diameter (DHUB) | 142 mm |
| Series/List # | MFK |
