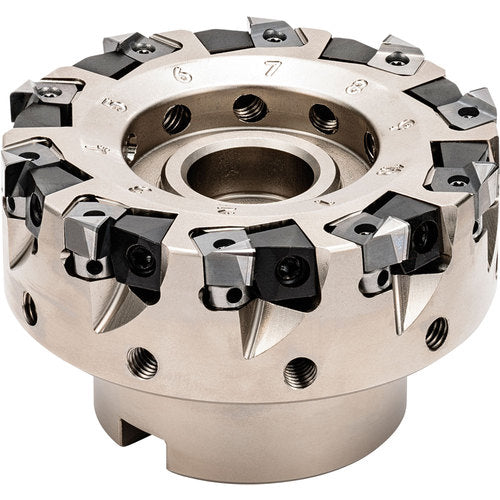

MFAH 100RS12TSF Inch Bore Diameter, 90 Degree Face Mill
Item #: KY96THN08280
Brand: Kyocera Precision Tools
Model #: THN08280
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 100 mm |
| Master Insert Identification (MIID) | ENET0905 |
| Cutting Diameter (DC) | 100 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 100 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 12 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 4.6 mm |
| Application | Facing | Finish Milling |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 50 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 70 mm |
| Series/List # | MFAH |
