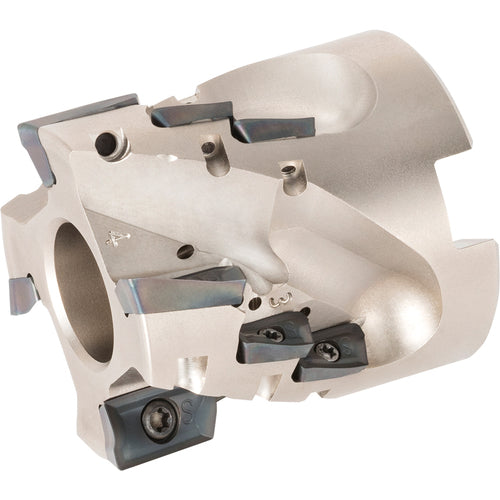

MECHT 50R171145TM (MEC Series), Helical Shell Mill
Item #: KY96THN08505
Brand: Kyocera Precision Tools
Model #: THN08505
| Product Specifications | |
|---|---|
| Application | Facing | Shouldering | Slotting |
| Master Insert Identification (MIID) | BDMT1704 (1st Stage) | BDMT11T308 (2nd Stage and Above) |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 20 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 43 mm |
| Cutting Diameter Maximum (DCX) | 50 mm |
| Cutting Diameter (DC) | 50 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm |
| Body Material | Steel |
| Flute Count (NOF) | 5 |
| Tool Type | Helical Shell Mill |
| Overall Length (OAL) | 65 mm |
| Series/List # | MEC |
| Number of Teeth | 20 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
