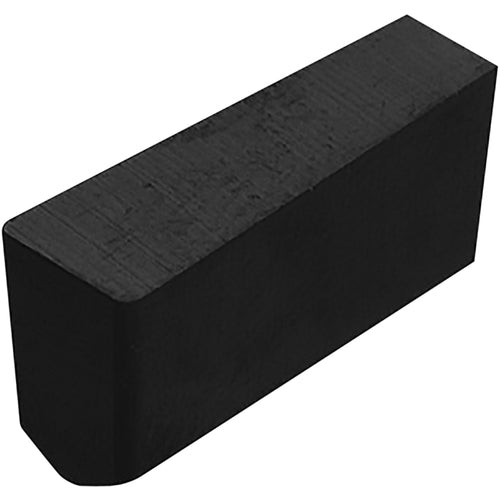

GG 15720T00320 A65 Grade Uncoated Ceramic, Indexable Grooving Insert
Item #: KY98TCR89099
Brand: Kyocera Precision Tools
Model #: TCR89099
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.1575″ |
| Applicable Material | Cast Iron | Hard Materials |
| Corner Radius (RE) | 0.02″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.6299″ |
| Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.197″ |
| Insert Style | GG |
| Insert Length (INSL) | 0.5906″ |
| Number of Teeth | 1 |
| Coating | Al2O3/TiC |
| Mounting Style | Clamp |
| Grade | A65 |
| Series/List # | EGT |
| Cutting Edge Material | Ceramic |
| Coating Process | Uncoated |
| Application | External Grooving |
| Measurement Type | Inch |
