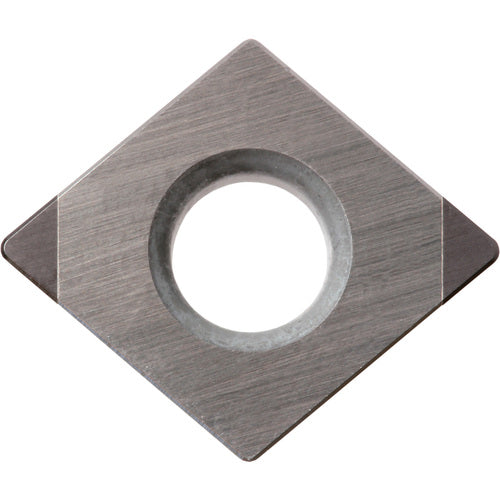

CPGB 321 ME KBN05M, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Item #: KY998832506
Brand: Kyocera Precision Tools
Model #: TBN01806
| Product Specifications | |
|---|---|
| Applicable Material | Hard Steel |
| Coating | MEGACOAT |
| Application | Boring | Internal Facing |
| Grade | KBN05M |
| Insert Style | CPGB |
| Fixing Hole Diameter (D1) | 0.1772″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 321 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | ME |
| Cutting Edge Material | CBN |
| Shape | Diamond |
