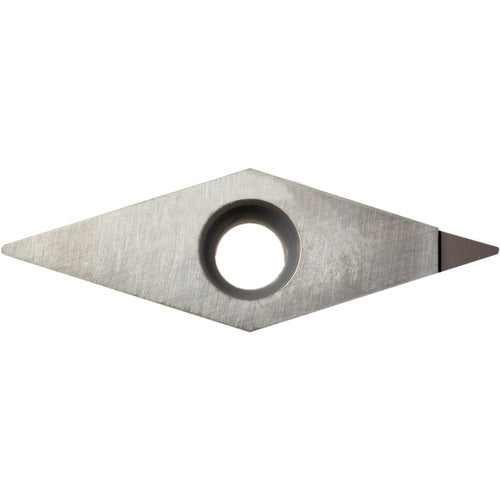

VBMT 3302 SE KPD001, 0.0039″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Diamond, Turning Indexable Insert
Item #: KY998836994
Brand: Kyocera Precision Tools
Model #: TBR05638
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Grade | KPD001 |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | VBMT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.0039″ |
| Number of Cutting Edges | 1 |
| Insert Size | 3302 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | SE |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Shape | Diamond |
| Cutting Edge Material | PCD |
