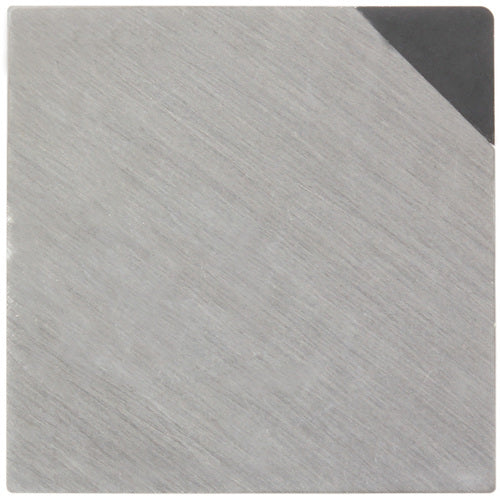

SPG 421 KPD001, 1/64″ Corner Radius, 1/8″ Thick, 1/2″ Inscribed Circle, 90 Degree Square, Turning Indexable Insert
Item #: KY99TBR03750
Brand: Kyocera Precision Tools
Model #: TBR03750
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | SPG |
| Number of Cutting Edges | 1 |
| Corner Radius (RE) | 1/64″ |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 421 |
| Quantity | 1 |
| Insert Thickness (S) | 1/8″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | ISOI |
| Cutting Edge Material | PCD |
| Model No | 8831040 |
| Grade | KPD001 |
