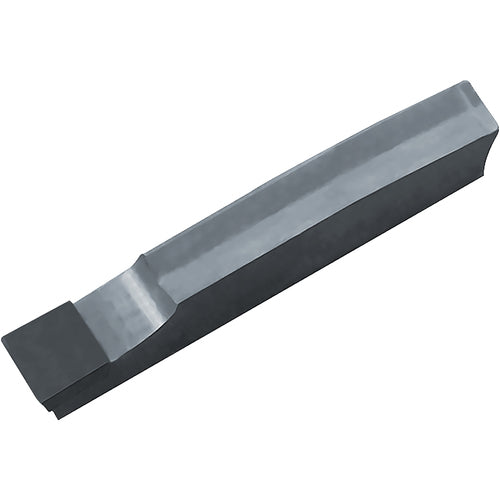

GDGS 6020N020NB KPD001 Grade PCD, Indexable Grooving Insert
Item #: KY99TBR10744
Brand: Kyocera Precision Tools
Model #: TBR10744
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 6 mm |
| Number of Cutting Edges | 1 |
| Corner Radius (RE) | 0.2 mm |
| Chip Breaker Type | NB |
| Cutting Depth Maximum (CDX) | 30 mm |
| Insert Style | GDGS |
| Insert Thickness (S) | 4.3 mm |
| Number of Teeth | 1 |
| Insert Length (INSL) | 20 mm |
| Mounting Style | Clamp |
| Grade | KPD001 |
| Series/List # | KGD |
| Cutting Edge Material | PCD |
| Coating Process | Uncoated |
| Application | External Deep Grooving | External Grooving |
| Measurement Type | Metric |
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Cutting Edge Length (L) | 2.9 mm |
| Cutting Direction (HAND) | Neutral |
